Equipment Introduction

BB fertilizer mixers (also known as blended fertilizer mixers or BB fertilizer blenders) are specialized equipment for the physical blending of single-element granular fertilizers such as nitrogen, phosphorus, and potassium. BB fertilizer (Bulk Blending Fertilizer) is a type of solid bulk blended compound fertilizer, specifically formulated based on the available nutrient content of the soil and the nutrient requirements of crops. The BB fertilizer mixer is the core processing equipment for achieving this precise formulation.

The core advantages of the BB fertilizer mixer are: large mixing capacity, easy formulation, and strong targeting. It can overcome the segregation phenomenon caused by differences in material specific gravity and particle size during the downward flow of the mixture, effectively improving the accuracy of batching. The equipment has a simple structure, is easy to operate, and is easy to maintain, greatly reducing equipment investment and saving manpower, financial resources, and energy consumption.

BB fertilizer mixers are generally divided into three mixing forms: vertical spiral, horizontal double-ribbon, and drum type. Among them, the drum type is favored by large-scale BB fertilizer plants due to its gentle mixing and lowest particle breakage rate. Unlike ordinary organic fertilizer mixers, BB fertilizer mixers pay more attention to protecting the physical form of the particles, and mostly use a gentle tumbling mixing principle to avoid the high-speed rotating blades damaging the particles.

Equipment Structure and Composition

The BB fertilizer mixer is typically divided into three main parts, along with a complete auxiliary system and electrical control system:

A complete BB fertilizer production line also includes: material storage silos, automatic batching machines, weighing scales, high-angle belt elevators, quantitative packaging machines, automatic bag sewing machines, finished product conveyor belts, and a computer control system.

Equipment Working Principle

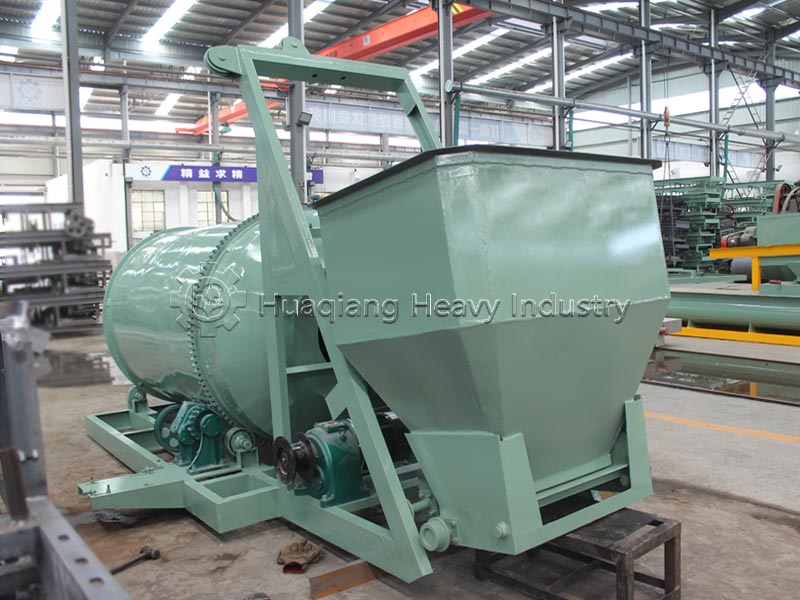

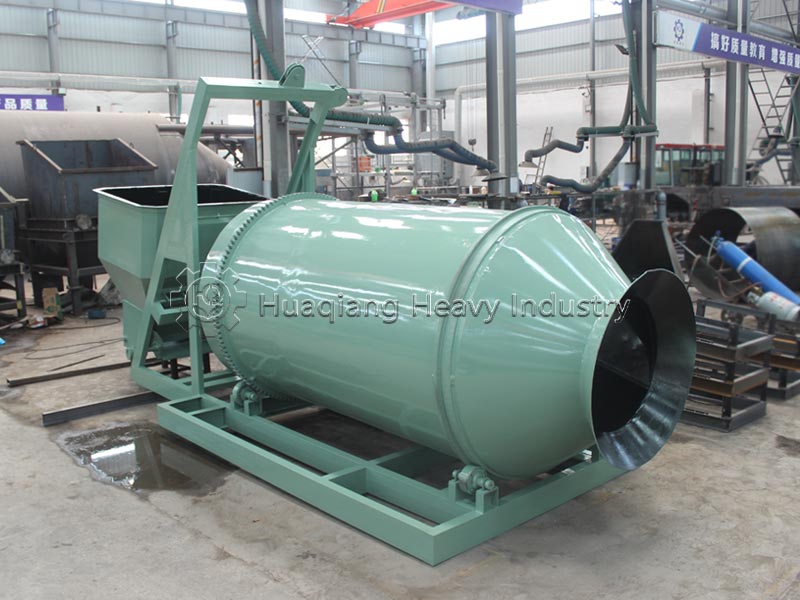

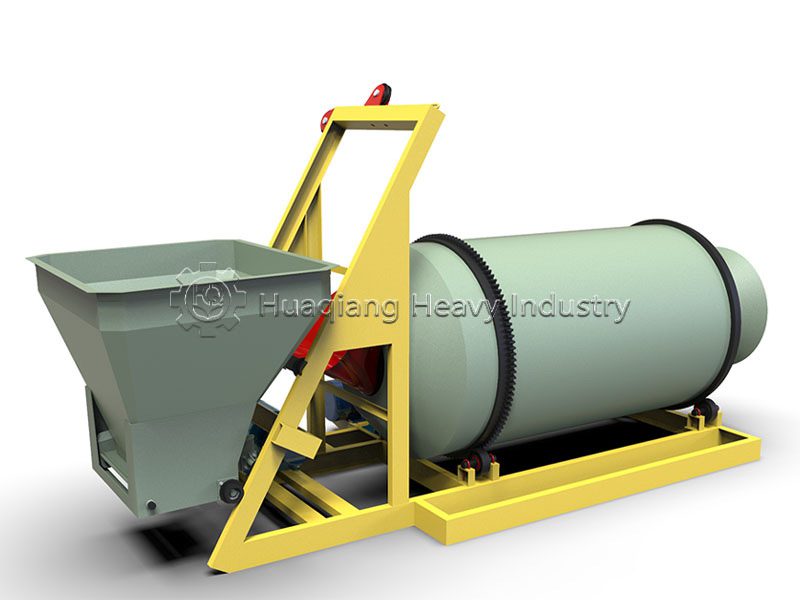

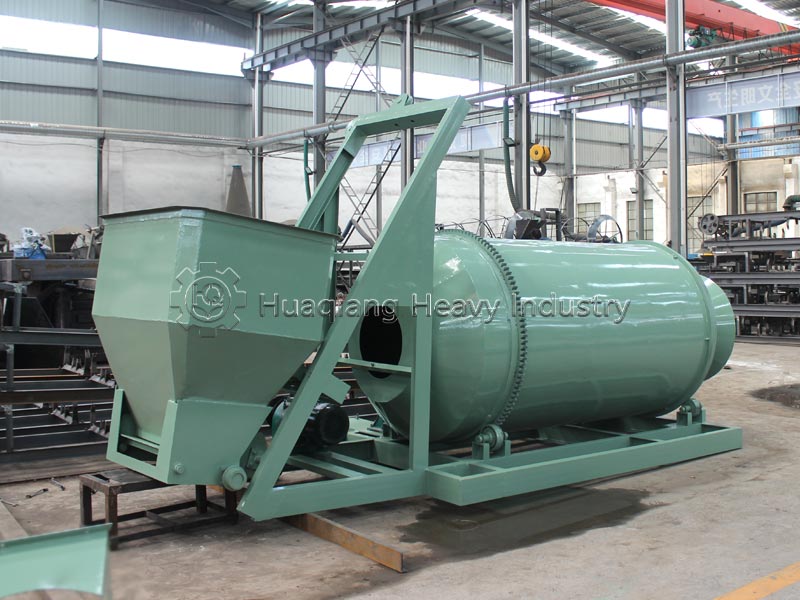

1. Drum Type (Most Commonly Used): The motor drives the drum to rotate at low speed. Internal lifting plates lift and allow the material to fall and tumble, forming axial and radial three-dimensional diffusion mixing. Materials interweave and convect, offsetting stratification caused by the density difference between urea, diammonium phosphate, and potassium fertilizer. There is no hard blade compression throughout the process, resulting in high particle integrity. Uniform mixing is completed in 5-10 minutes per batch.
2. Horizontal Double-Spiral Type (Continuous Production Line): Two spiral ribbon main shafts rotate in opposite directions at low speed. The outer spiral ribbon pushes the material forward, while the inner spiral ribbon flows back in the opposite direction, forming a circulating convection. It can simultaneously spray trace elements from liquids, suitable for compound mixing of dry granules and small amounts of powder, supporting continuous production with uninterrupted feeding and discharging.
3. Vertical Conical Type (High Precision Small Batch): The dual propellers rotate both around their own axes and revolve along the drum wall, achieving three-dimensional diffusion mixing. This results in the highest uniformity of trace element addition, suitable for the production of high-end specialty fertilizers and soil-tested customized fertilizers.

Applicable Raw Materials for the Equipment

The BB Fertilizer Mixer has specific requirements for raw materials:

1. Core Applicable Raw Materials

It primarily focuses on basic fertilizer raw materials with a particle diameter of 2-4mm, high particle strength, and resistance to breakage, such as urea, ammonium chloride, potassium chloride, and monoammonium phosphate. It can precisely mix conventional granular raw materials such as urea, diammonium phosphate, potassium chloride, and potassium sulfate, and can also add micronutrient granules and functional granular additives as needed.

2. Raw Material Requirements

The particles to be mixed must have similar particle sizes (difference ≤1mm) and good roundness. Mixing in powdery materials or damp, clump-forming fertilizers is strictly prohibited, as this can easily lead to uneven mixing or material blockage. Mixing with chemically unstable materials or materials prone to antagonistic reactions (such as ammonium nitrogen and alkaline substances) is not allowed, and adding large amounts of liquid (>3%) is also unsuitable to prevent particle dissolution and clumping.

3. Raw Material Diversity

The equipment is not picky about particle size and has broad raw material compatibility, meeting the needs of formula fertilizer production for different crops such as wheat, corn, and fruits and vegetables.

Applications of the Equipment

BB fertilizer mixers have a wide range of applications, mainly including the following fields:

1. BB fertilizer/blended fertilizer production: The core application scenario is the production of binary or ternary compound fertilizers containing nitrogen, phosphorus, and potassium.
2. Organic fertilizer mixing: It can be used for mixing raw materials for organic fertilizers and bio-organic fertilizers.
3. Chemical industry: Uniform mixing of chemical raw materials and feed additives.
4. Metallurgy and building materials: Mixing and blending of ore powder and building material raw materials.
5. Others: Material handling under dust collectors in thermal power plants, etc.

This equipment is suitable for both large-scale continuous production in fertilizer manufacturing plants and small- to medium-sized batch fertilizer blending needs of fertilizer distributors.

Equipment Capacity Parameters

Production Capacity:

Small: 1–5 t/h, suitable for township fertilizer distribution stations and distributors.

Medium: 5–15 t/h, suitable for small and medium-sized fertilizer enterprises.

Large: 15–40 t/h (roller continuous line can reach 120 t/h), suitable for large fertilizer groups.

Annual Production Scale: A single production line can achieve an annual output of 10,000–250,000 tons of BB fertilizer.

Equipment Application in the Production Line

1. Composition of a Complete BB Fertilizer Production Line

A complete BB fertilizer production line includes: a fully automatic batching system, a lifting conveyor, a dedicated BB fertilizer mixing system, a finished product storage silo, an automatic quantitative packaging weigher, and a bag-sewing machine, among other core components.

Complete Process: Storage System → Feeding System → Metering System → Conveying and Lifting System → Mixing and Stuffing → Automatic Packaging and Sewing → Finished Product Belt Conveying → Computer Control System.

2. Fully Automated Production

The BB fertilizer production line consists of three parts: an automatic batching system, a mixing system, and a quantitative packaging machine. It is computer-controlled and fully automated. The batching system is computer-controlled and uses electronic weighing to strictly control the proportions. The equipment uses fully automatic computer control; both batching and packaging are done using electronic weighing.

3. Core Technological Advantages

The process utilizes direct feeding from the lifting trough and direct unloading from the mixer, achieving almost zero material spillage. Integrating batching, mixing, and quantitative packaging, it can automatically prepare 3-6 types of materials according to the formula.

4. Flexible Formula Switching: Formulas can be modified at any time to produce different BB fertilizer products for different crops and soil conditions in different regions. The equipment discharges completely without residue, is easy to clean, and allows for quick switching between different fertilizer formulas, avoiding cross-contamination of materials.
5. Enclosed Operation: The enclosed operation design eliminates dust pollution and complies with environmental protection standards for agricultural input production.

Equipment Operation and Maintenance Methods

(I) Preparation Before Feeding

1. Equipment Inspection: Check the mixer’s fixation, ensuring the anchor bolts are secure; check the mixing blades for deformation, wear, or looseness; check the transmission system for sufficient lubrication and no abnormal noise; check the inlet and outlet gates for flexible operation and good sealing.
2. Material Pretreatment: Screen all raw materials to remove impurities such as stones, mud, and metal scraps; ensure all raw materials have consistent particle size. If materials are clumped, they must be crushed and broken up beforehand, with clumped particles not exceeding 5mm in diameter.
3. Site Preparation: Check the ventilation and dust control facilities at the work site and turn on dust control equipment; operators must wear safety helmets, dust masks, gloves, and non-slip shoes.

(II) Feeding Operation

The feeding sequence should follow the principle of “lighter materials first, then heavier materials; finer materials first, then coarser materials; dry materials first, then wet materials.” The first step involves adding fine-grained, lightweight raw materials (such as powdered organic fertilizer and fine monoammonium phosphate powder);

The second step involves adding medium-grained, medium-density raw materials (such as urea granules and potassium sulfate granules);

The third step involves adding coarse-grained, heavy raw materials.

(III) Mixing and Discharging

The mixing time is usually controlled at 5-10 minutes. After mixing, the drum can be reversed to discharge the material. Feeding should be stopped before stopping the machine; stopping the machine while material is still present is strictly prohibited.

(IV) Maintenance

1. Inspection and maintenance of the machine must be performed after the machine is stopped.
2. Regularly check the working condition of each moving part and repair any problems immediately.
3. After mixing, the machine can be run unloaded for 3-5 minutes to use airflow to dry any residual moisture and material debris inside the equipment.
4. When using the machine in winter, the focus should be on “moisture prevention, anti-caking, and equipment protection”.

Common Equipment Problems and Solutions

Target Customers for this Equipment:

1. Large-scale BB blended fertilizer manufacturers (fertilizer plants with an annual output of 10,000 to 200,000 tons);
2. Agricultural input chain distribution centers and township soil testing and fertilizer formulation service stations;
3. Large-scale planting groups and fruit and vegetable bases with their own fertilizer processing workshops;
4. Manufacturers of compound fertilizers, slow-release fertilizers, and organic-inorganic blended fertilizers;
5. Organic fertilizer complete equipment engineering companies and fertilizer equipment distributors;
6. Environmental protection agricultural industrial parks and soil conditioner manufacturers;
7. Small agricultural input workshops and individual operators processing multi-formula customized fertilizers.

Core Technological Advantages of the Equipment:

1. Low Particle Breakage and Preservation: Gentle tumbling/ribbon structure, particle breakage rate <0.5%, preserving the appearance of fertilizer particles and the slow-release effect of the coating;
2. Anti-Segregation and Precise Mixing: Three-dimensional convection mixing offsets specific gravity differences, nutrient variation coefficient ≤5%, meeting national standards for blended fertilizers;
3. Adaptable to Multiple Formulas and Rapid Production Changeover: No dead corners in the cylinder, extremely low discharge residue, minimizing cross-contamination when switching between different fertilizer formulas;
4. Environmentally Friendly Closed Production: Fully enclosed cylinder + matching dust removal system, no dust emission, meeting environmental impact assessment requirements;
5. Model Coverage of Full Capacity: From small 1-ton intermittent machines to 60-ton/hour continuous horizontal machines, adaptable to production lines of different sizes;
6. Low Maintenance Costs: Easily replaceable and removable parts, simple overall structure, low operator threshold;
7. Strong Automation Adaptability: Can be connected to PLC batching systems and fully automatic packaging machines to achieve unmanned continuous production.

Key differences between BB fertilizer mixers and organic fertilizer double-shaft paddle mixers.
