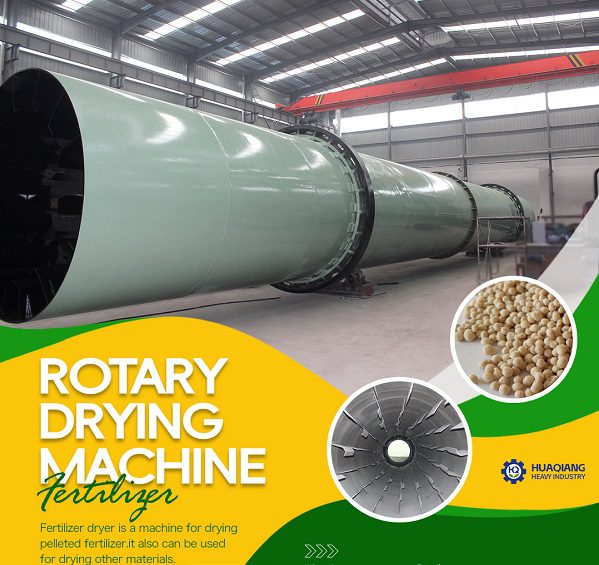

In fertilizer production, the rotary dryer is a key piece of equipment for completing granular drying, and the lifting plates (also known as material lifting plates) hidden inside the drum are the core components that determine the heat exchange efficiency of the entire machine. Although seemingly insignificant, they directly affect output, energy consumption, and finished product quality. So, how exactly do the lifting plates work? And how should different types of lifting plates be selected for different materials?

The Core Function of Lifting Plates: “Weaving” Materials into a Curtain for Heat Exchange The rotary dryer drum is a rotating cylinder slightly inclined to the horizontal. When material enters from the higher end, as the drum rotates, the lifting plates installed on the inner wall repeatedly lift the material, bringing it to the top and then continuously scattering it down. The key to this process is that the material forms a uniform curtain inside the drum, fully exchanging heat with the hot airflow. The function of the lifting plates is to use mechanical force to “break” the pile of material into countless fine particles suspended in the hot airflow, maximizing the contact area between the hot flue gas and the material. If the lifting plate design is flawed, materials cannot be evenly distributed, leading to airflow short-circuiting within the drum, a phenomenon known as the “wind tunnel”—a large amount of hot air escapes directly from the less resistant channels, resulting in significant energy waste.

Types and Selection Logic of Lifting Plates Different material characteristics correspond to different lifting plate types. Mainstream types include: Lifting-type lifting plates: Suitable for large materials or materials easily adhering to the drum wall, forcefully lifting and separating the material from the drum wall. Four-compartment lifting plates: Dividing the cylinder into four independent fan-shaped working chambers, increasing the contact area between the material and hot gas, while also increasing the filling rate and reducing dust loss; suitable for dense, difficult-to-disperse materials. Cross-shaped or frame-shaped lifting plates: Suitable for brittle and easily dispersed small materials, ensuring even dispersion across the entire cross-section of the drum. Sleeve-type lifting plates: Designed specifically for compound heat transfer rotary dryers. Divided (fan-shaped) lifting plates: Suitable for very fine, easily airborne materials, reducing the likelihood of fine powder being carried away by the airflow by lowering the material’s fall height. The lifting plates can also be arranged in sections along the axial direction of the cylinder. Spiral guide plates are installed 1 to 5 meters from the feeding end to prevent wet material from sticking and accumulating, while no lifting plates are installed 1 to 2 meters from the discharge end to avoid dry material being carried away by exhaust gas.

Combined Lifting Plates: Breaking the Efficiency Bottleneck of Single Structures Traditional compound fertilizer dryers have long used a single L-shaped lifting plate structure, resulting in prominent problems such as low output, high energy consumption, low thermal efficiency, and high output moisture content. Combined lifting plates have emerged to address this issue: by organically combining lifting plates with different angles and functions, the material experiences different throwing trajectories in different sections of the cylinder. For example, the combination of angular lifting plates and swastika-shaped lifting plates can effectively reduce the “wind tunnel” phenomenon. A scheme using lifting plates of three angles (0 degrees, 90 degrees, and 135 degrees) as a group, arranged in multiple groups along the circumference of the cylinder, has been proven to significantly improve the dryer’s thermal efficiency. With combined lifting plates, the heat transfer area increases, the heat transfer time is extended, and heat exchange is enhanced.

Scientific Path to Optimizing the Material Handling Plate Modern material handling plate design has moved from empirical exploration to precise calculation. Engineers establish models of material holding capacity and spreading on the material handling plates, and use discrete element simulation software (such as EDEM) to simulate the material movement trajectory. Studies have shown that even small changes in parameters such as the plate installation angle, the included angle of the plate, and the longitudinal length can significantly affect the uniformity of material distribution. The optimal drying effect is achieved when the rotary drum installation angle is generally no more than 5° and the combined plate sliding plate angle is no less than 40°. The number of platelets is generally estimated as n = (6-10)D (D is the drum diameter in meters). The platelet density should ideally be 8 to 10 plates per meter—insufficient density results in low material curtain coverage, while excessive density leads to material interception and increased energy consumption.

Conclusion Material handling plate design is not simply “welding a few iron plates onto the drum wall,” but a systematic engineering discipline integrating material mechanics, thermodynamics, and computational fluid dynamics. From single L-shaped lifting plates to multi-angle combined lifting plates, from experience-based selection to simulation optimization—every advancement in lifting plate design directly translates into energy saving, consumption reduction, and quality improvement in the fertilizer drying process. Understanding lifting plates means understanding the “underlying logic” of fertilizer drying efficiency.

The lifting plate design is the hidden engine of drying efficiency, but its true potential is unlocked only when integrated into a well‑orchestrated production system. A modern fertilizer dryer machine equipped with optimised combined lifting plates works in tandem with the fertilizer dryer and cooler and the fertilizer drying and cooling machine to ensure precise moisture removal and temperature stabilisation, preventing caking and preserving granule strength. Within the broader organic fertilizer production process, these drying and cooling units must be seamlessly matched with upstream granulation and downstream screening. The organic fertilizer combined granulation process — integrating disc, drum, or extrusion granulators — produces granules with specific porosity and hardness, which directly influence drying behaviour. Therefore, selecting the right organic fertilizer production equipment means not only choosing a robust dryer but also ensuring that the lifting plate geometry, drum speed, and air flow are calibrated to the material’s moisture content, particle size, and fibre characteristics. When all components are harmonised, the production line achieves higher thermal efficiency, lower fuel consumption, and consistent product quality — transforming the dryer from a mere energy consumer into a precise process control tool that underpins sustainable, cost‑effective fertiliser manufacturing.
